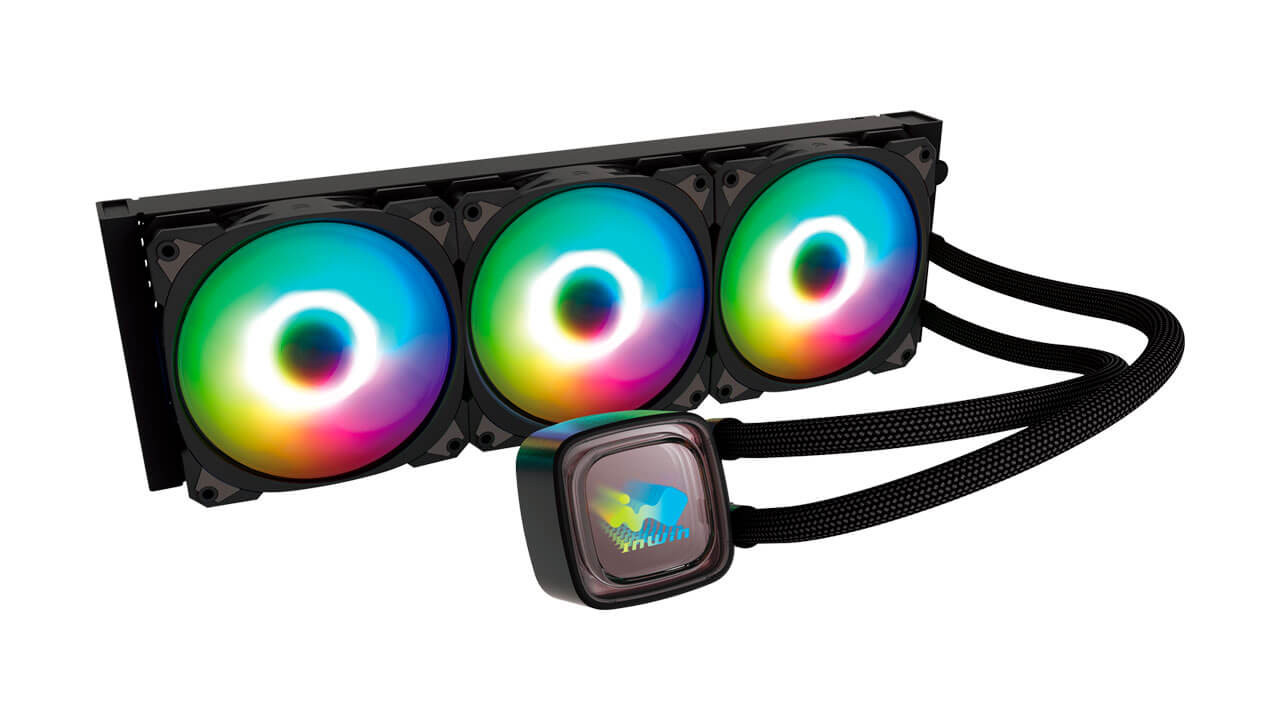

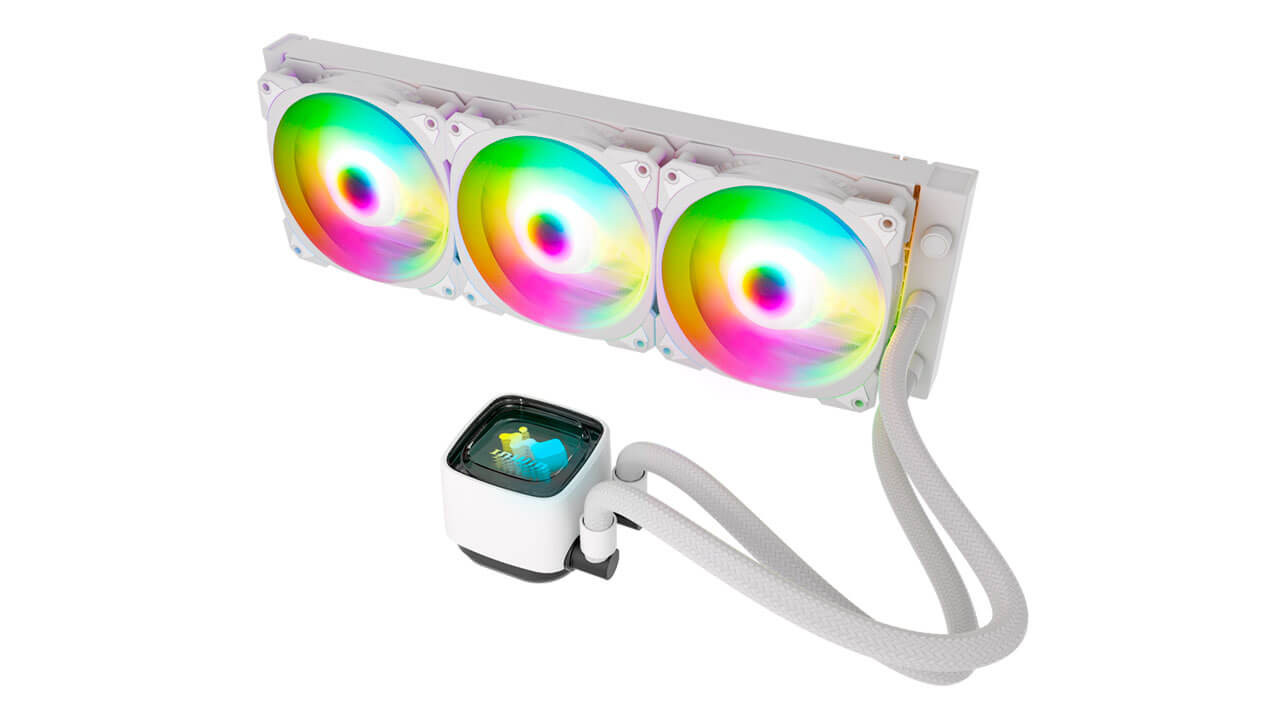

Infinity Mirror Design

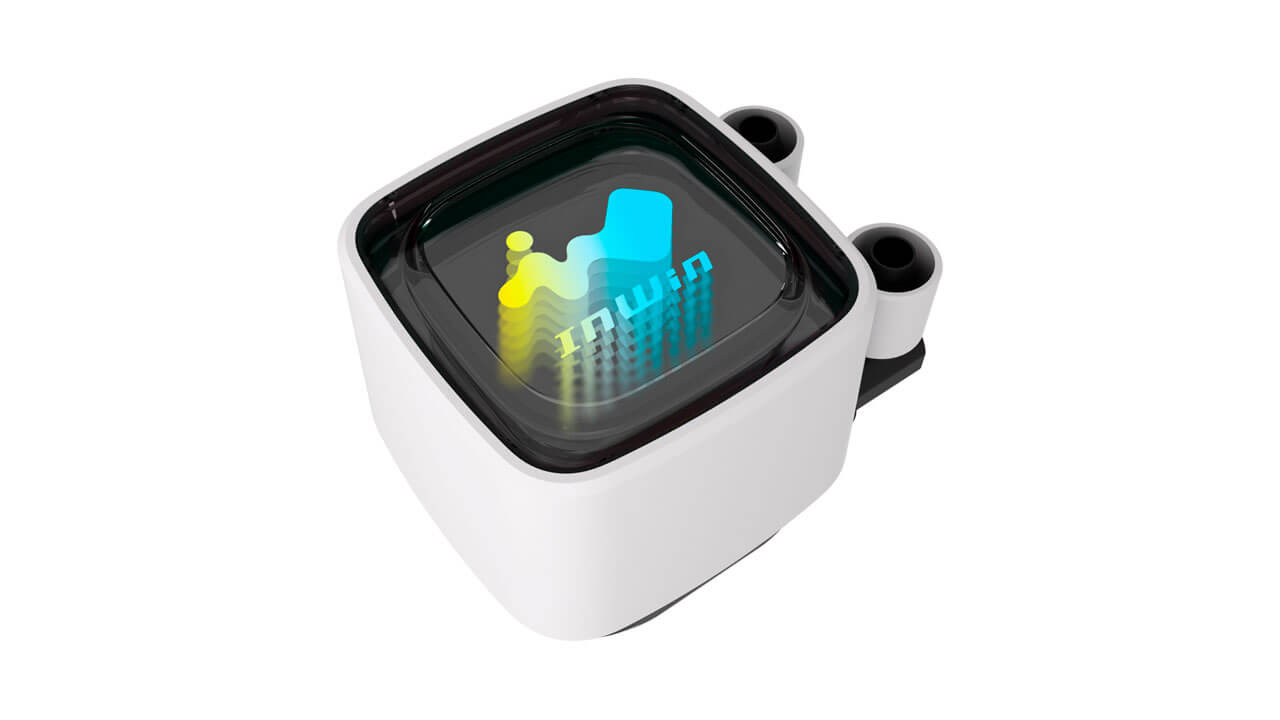

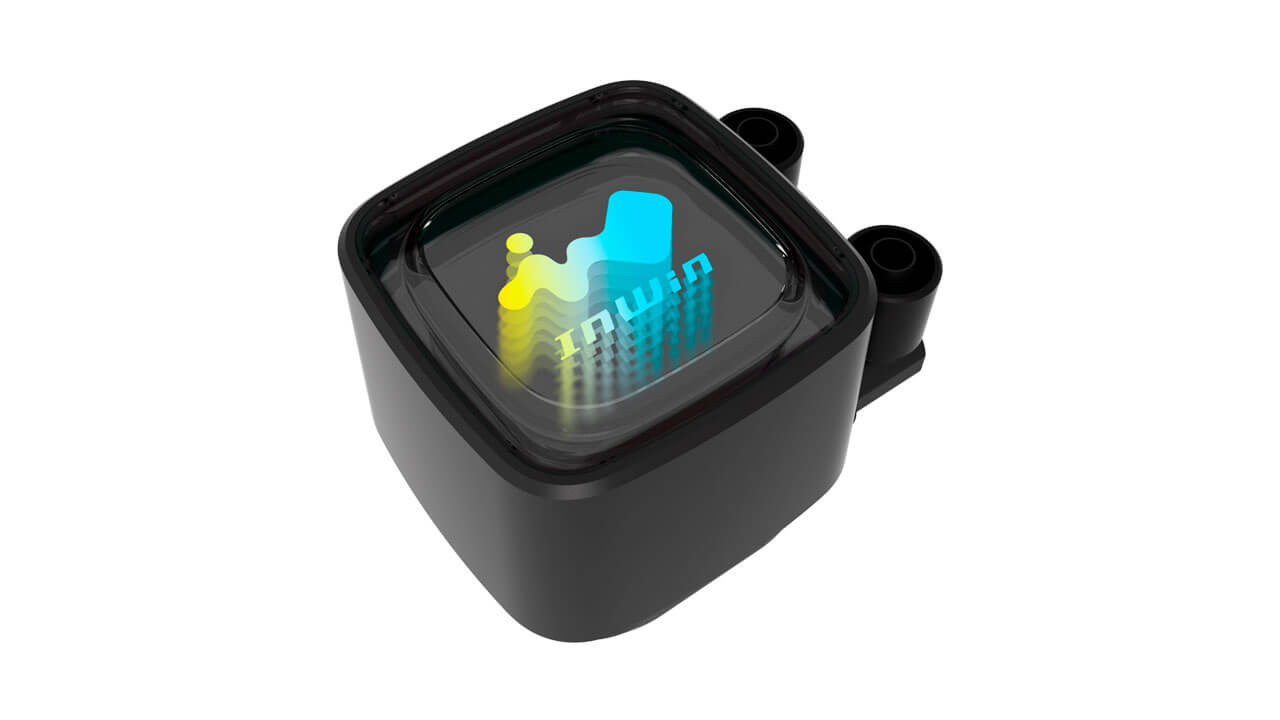

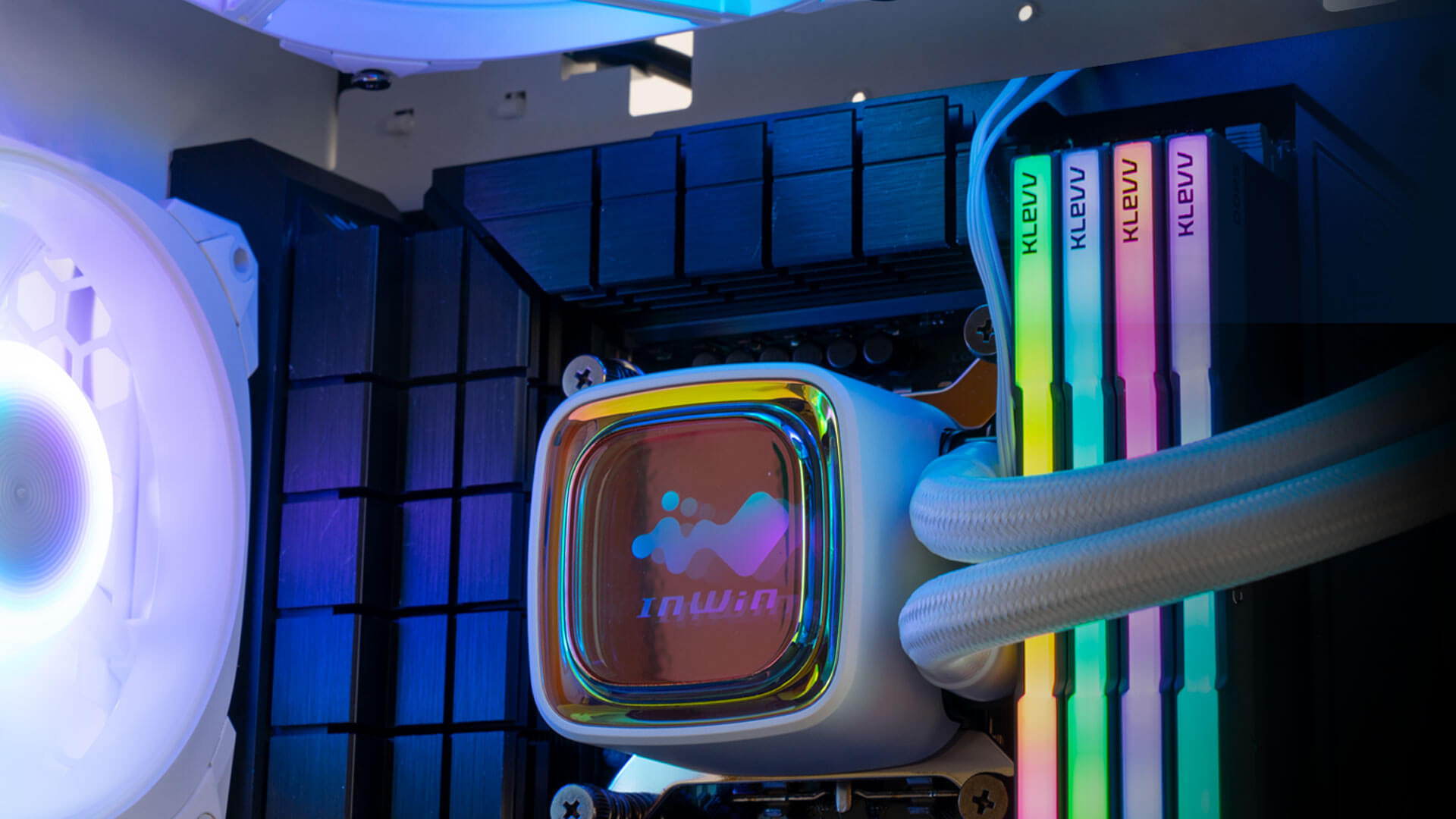

The ARGB water block display gains inspiration from the radiance of light and reflections, creating an infinite, vibrant, colorful glow from every angle.
The ARGB water block display gains inspiration from the radiance of light and reflections, creating an infinite, vibrant, colorful glow from every angle.

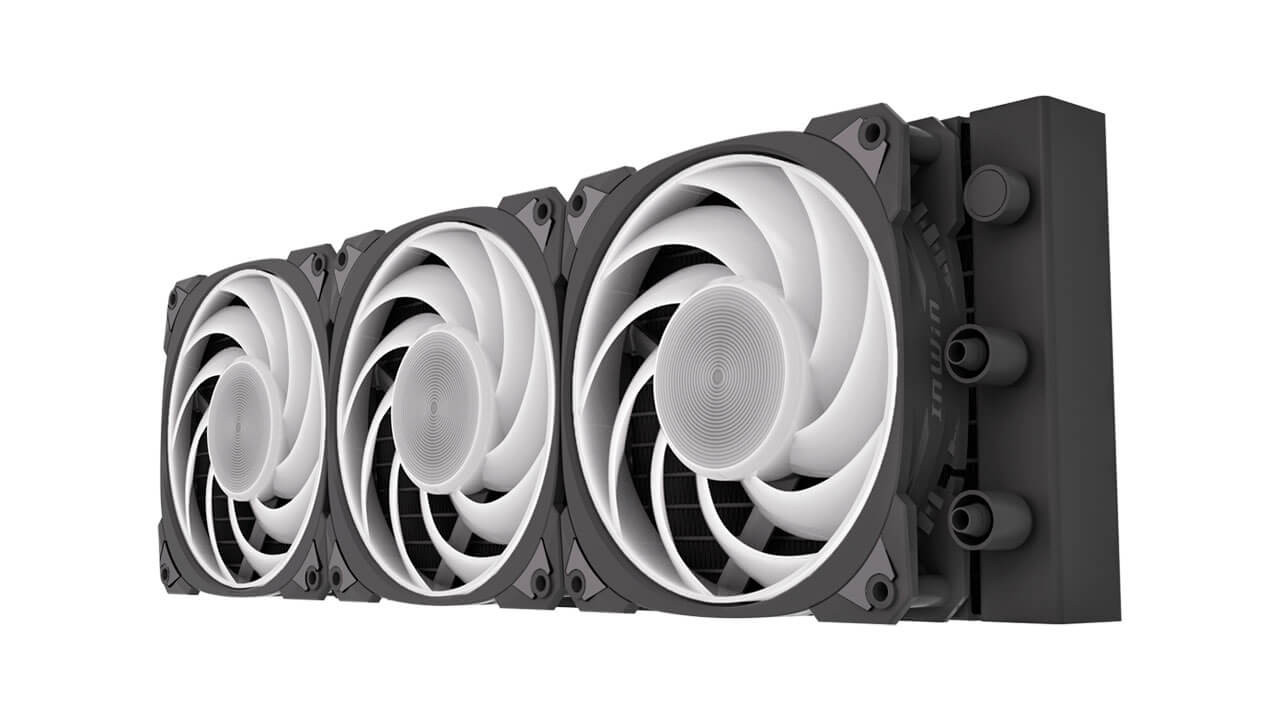

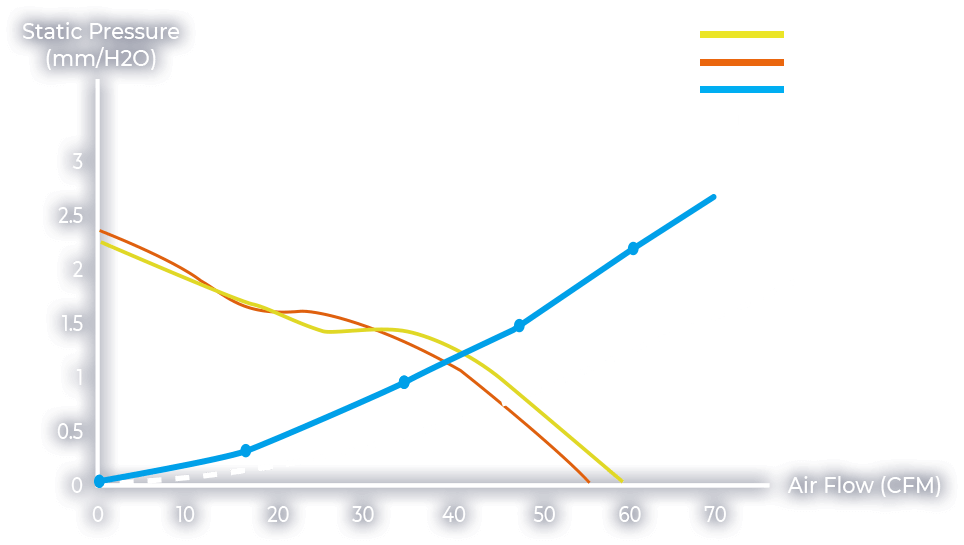

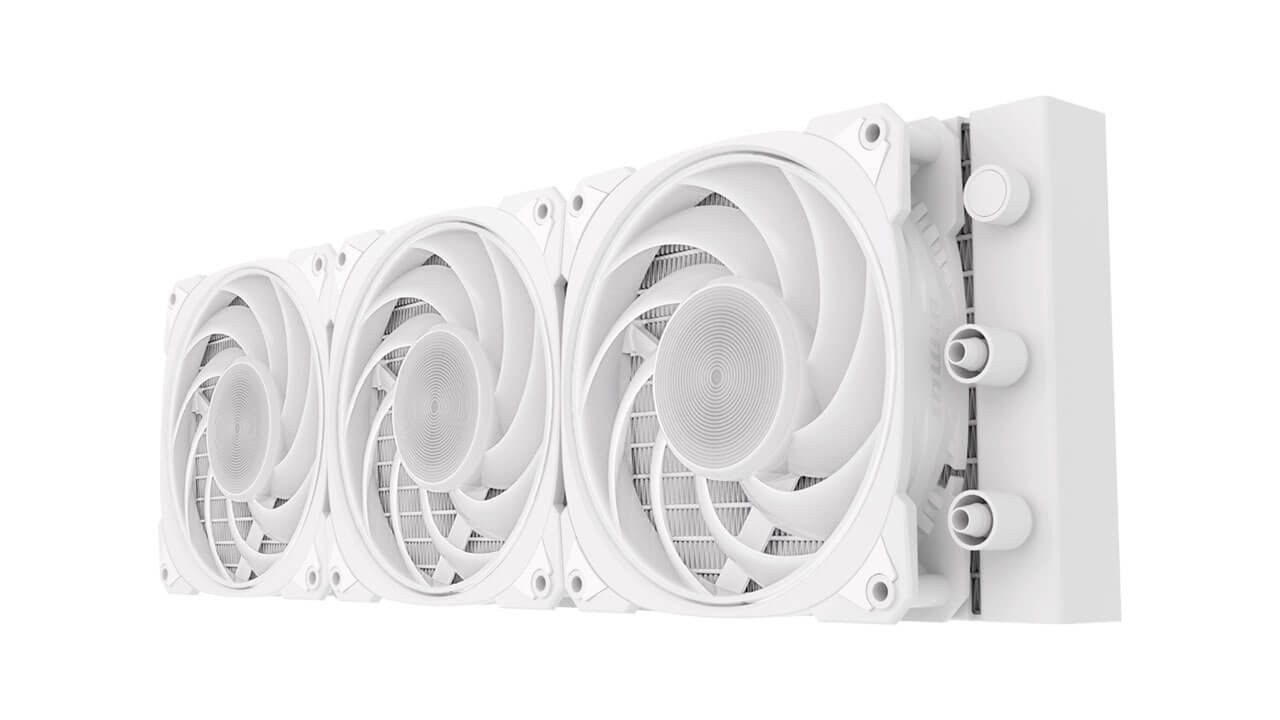

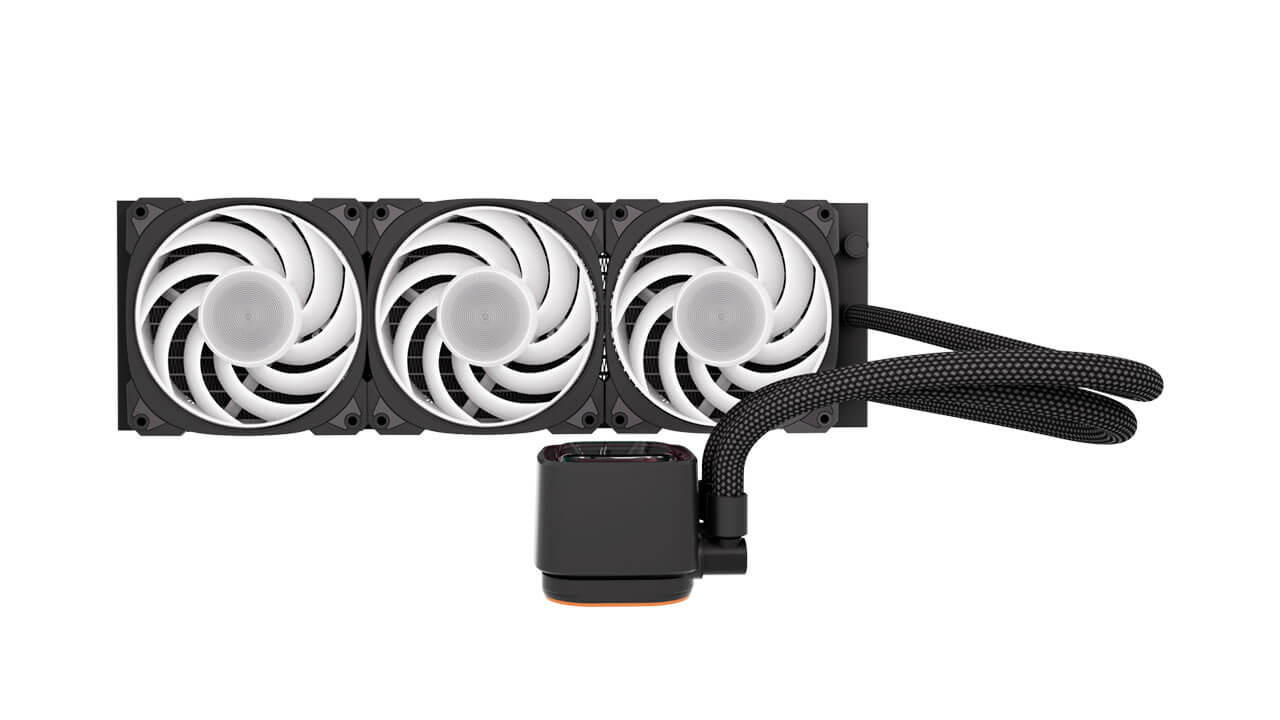

The AR Series comes armed with the Neptune AN120/AN120P fans. These fans offer excellent cooling performance without sacrificing your peaceful area.

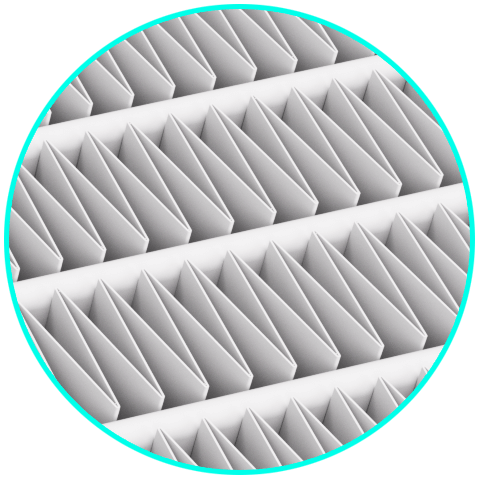

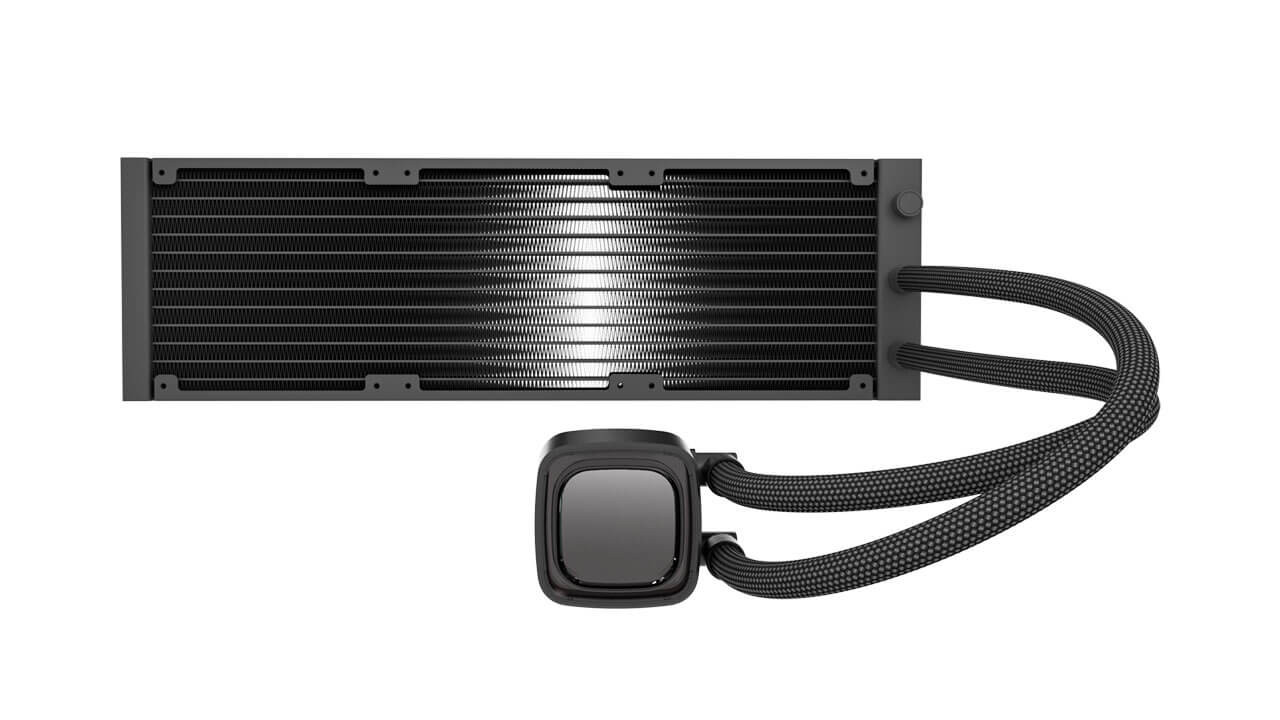

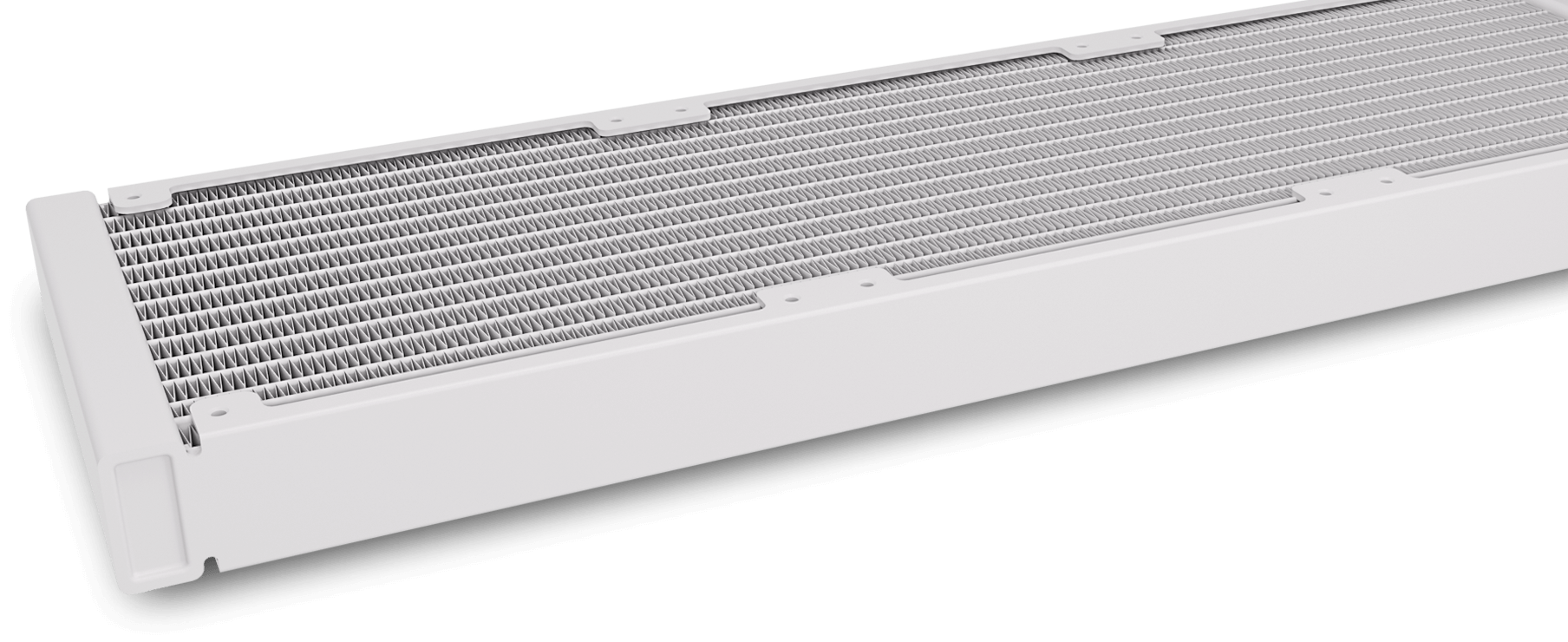

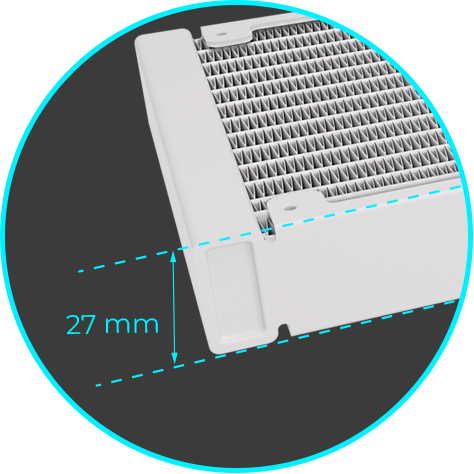

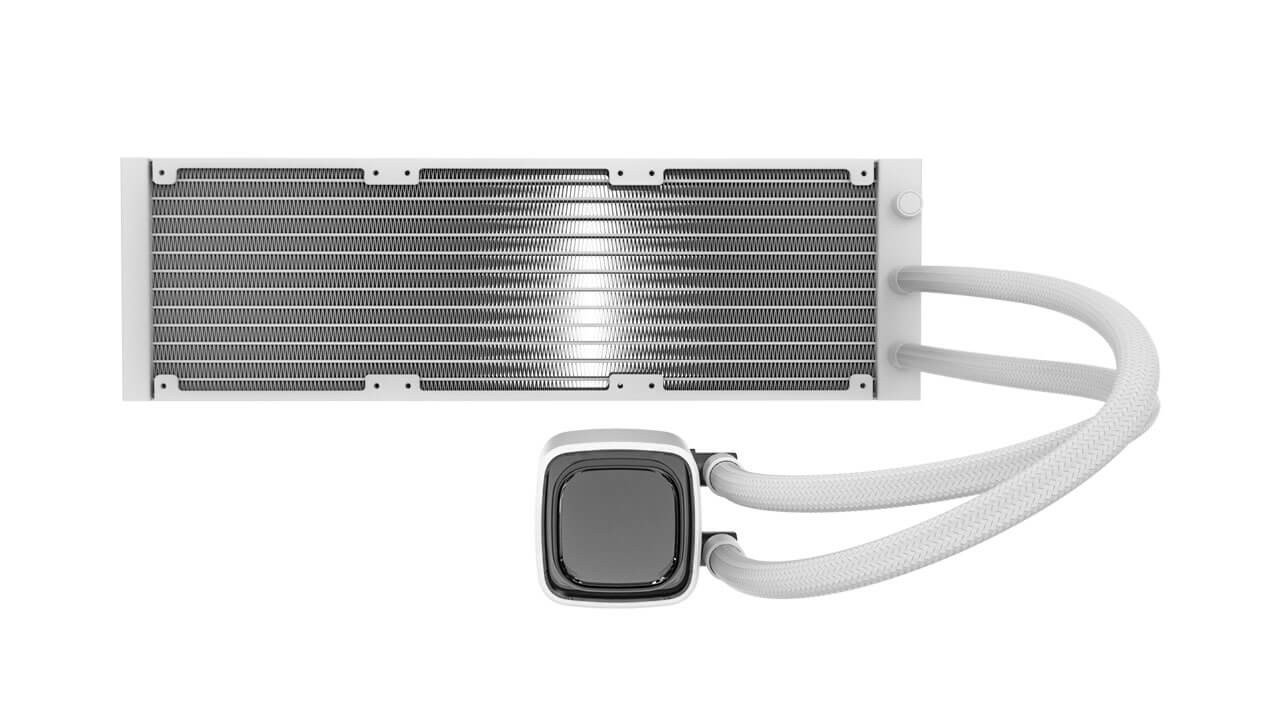

The 27 mm radiator with 20 FPI (fins per inch) provides a large heat dissipation area, enhancing thermal conductivity.

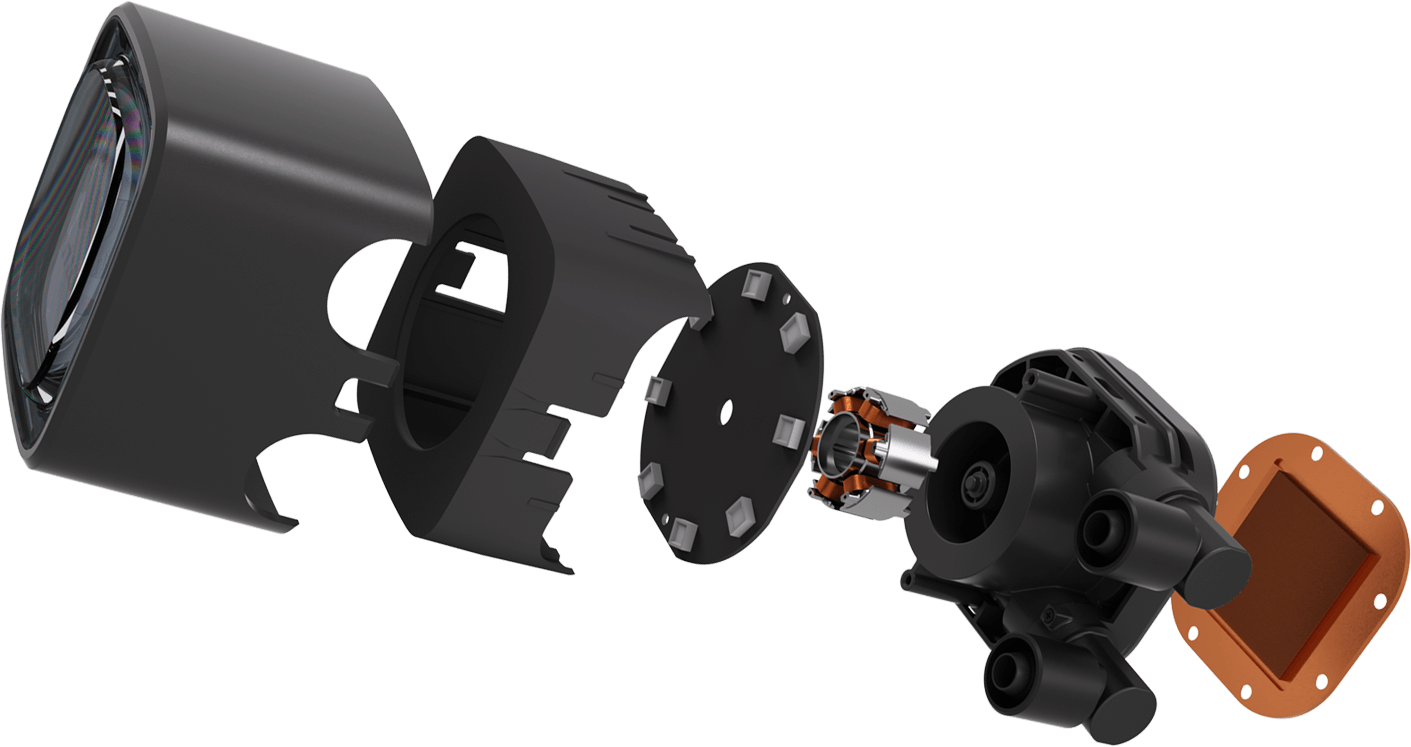

The pump utilizes a three-phase, six-pole motor, ensuring high performance and reduced noise during operation. Additionally, its large copper baseplate ensures efficient cooling across all loads.
| CPU Socket Support: | |
| Intel® | LGA 1851/ 1700/ 15xx/ 1200/ 115x |
| AMD | AM5/ AM4/ AMx/ FMx |

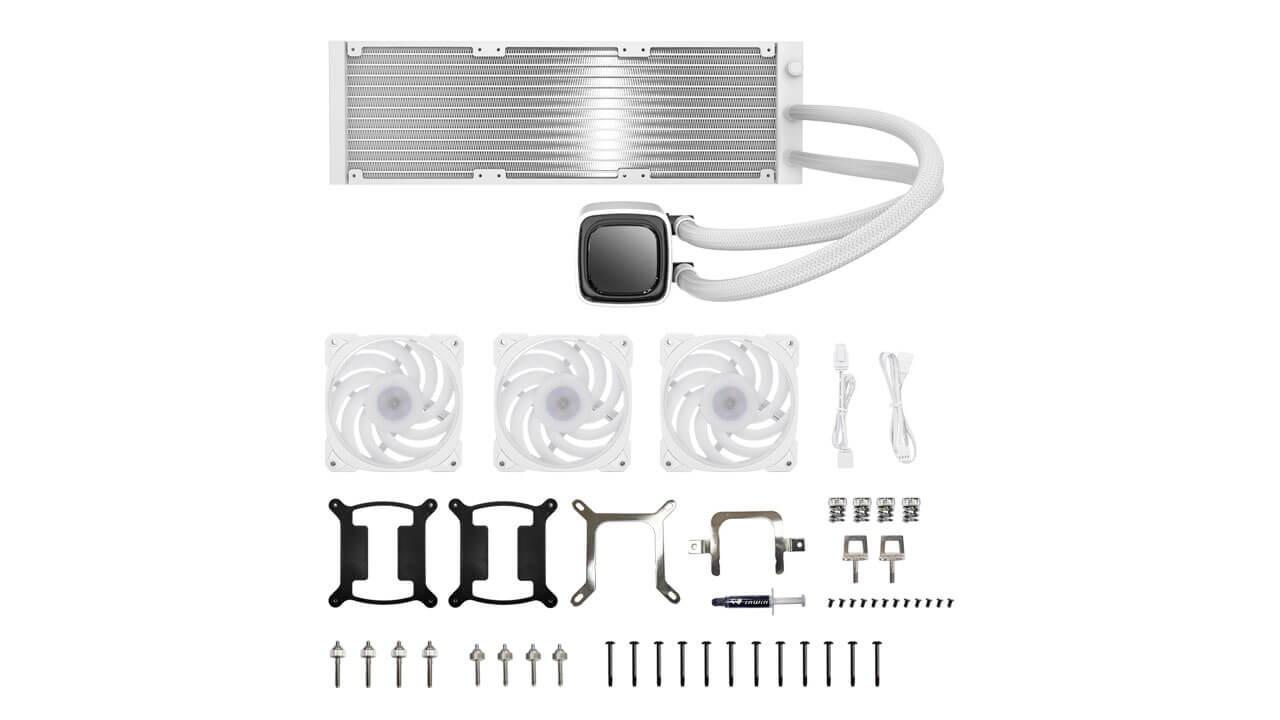

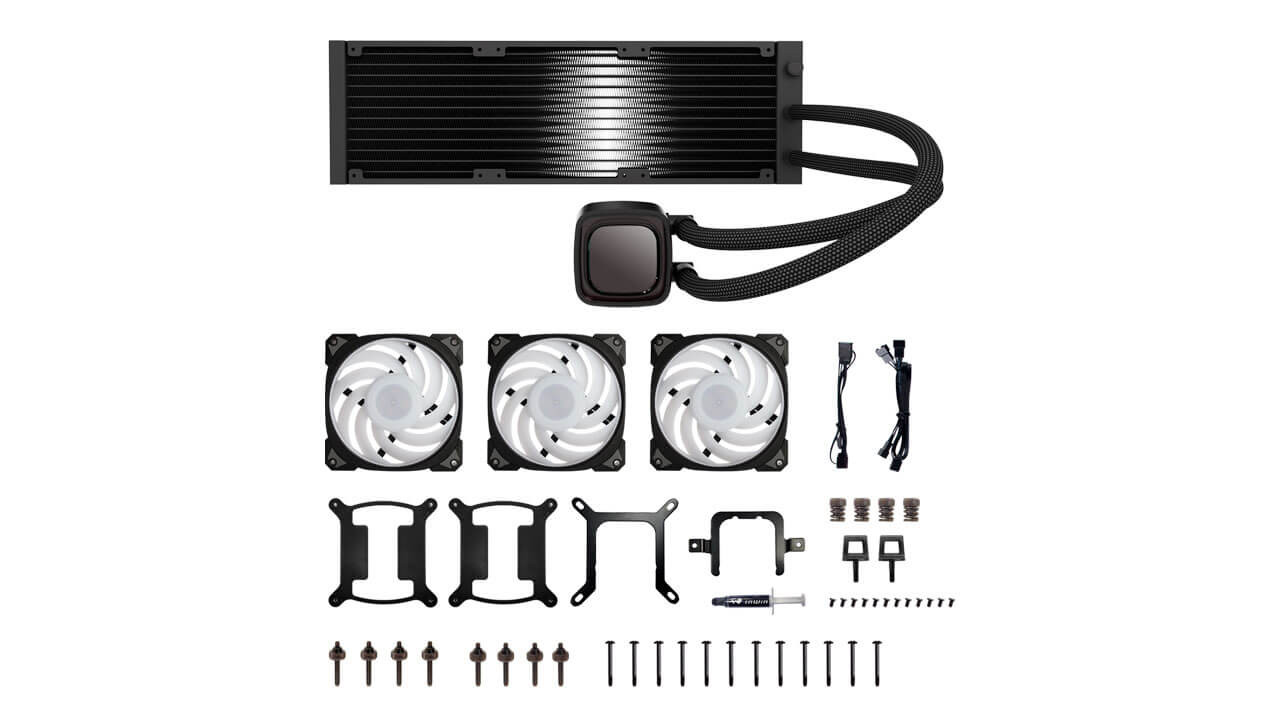

The modular, tool-free mounting brackets are designed for simple installation on all the latest CPU sockets, including LGA 1851 and AM5.

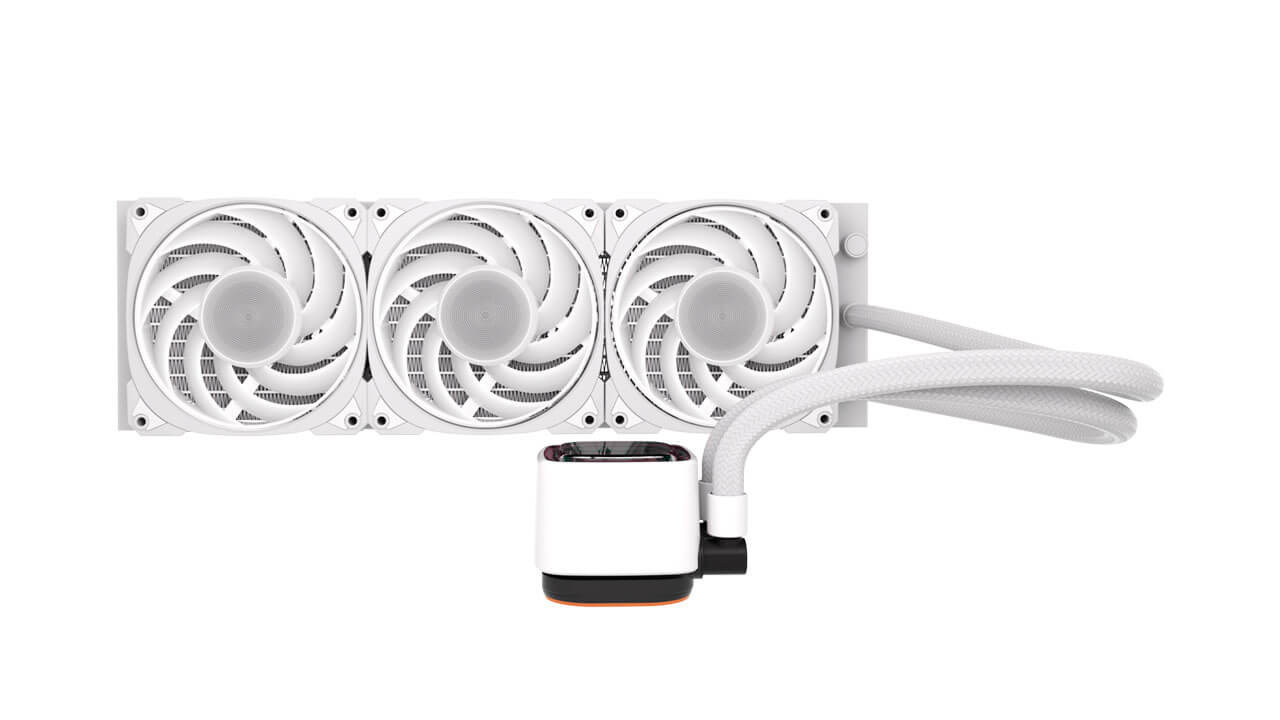

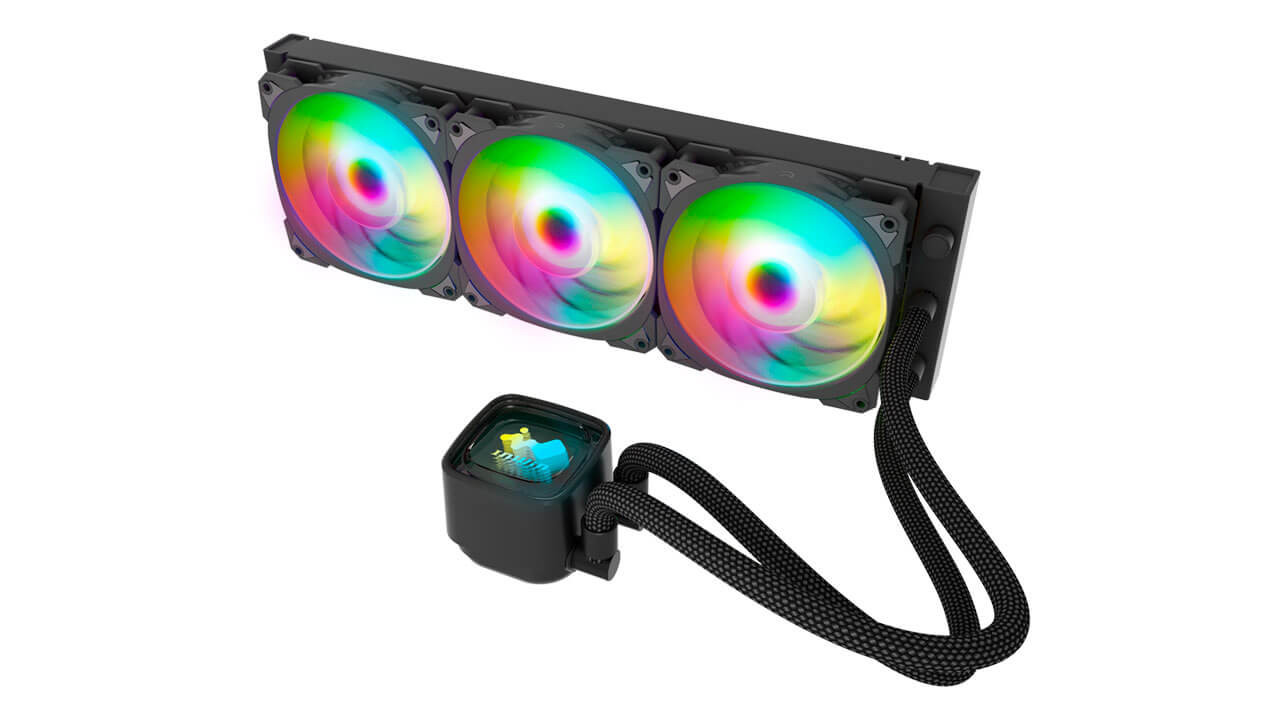

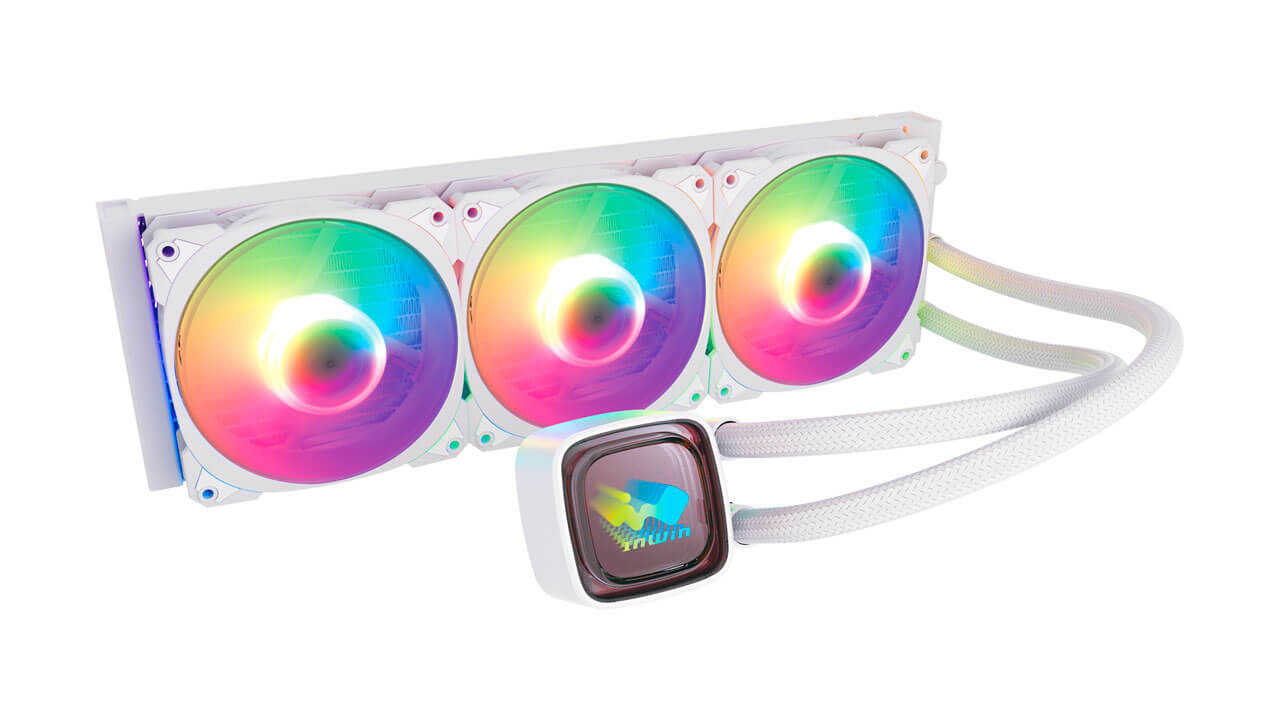

| Model | AR36 | ||
|---|---|---|---|
| Model Number | IW-LC-AR36BLK | IW-LC-AR36WHI | |
| Colors | Black | White | |
| CPU Socket Support | Intel® LGA 1851/ 1700/ 15xx/ 1200/ 115x AMD AM5/ AM4/ AMx/ FMx |
||

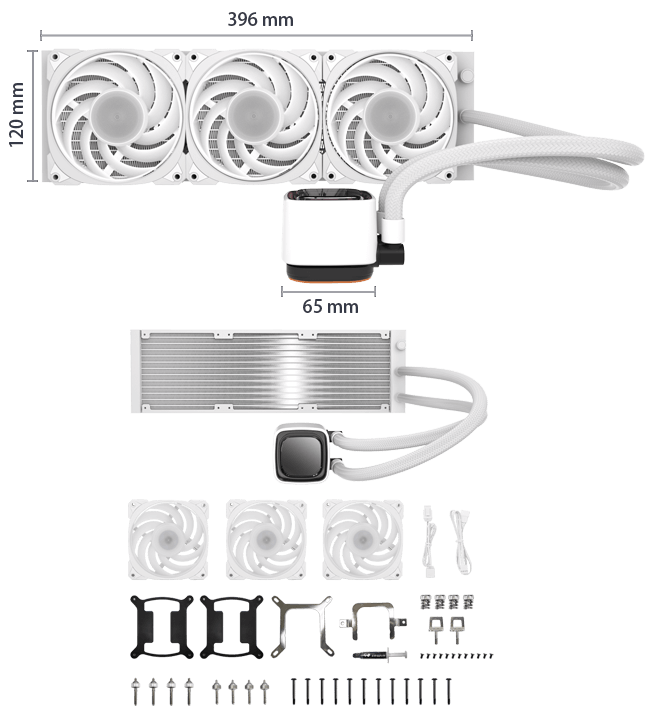

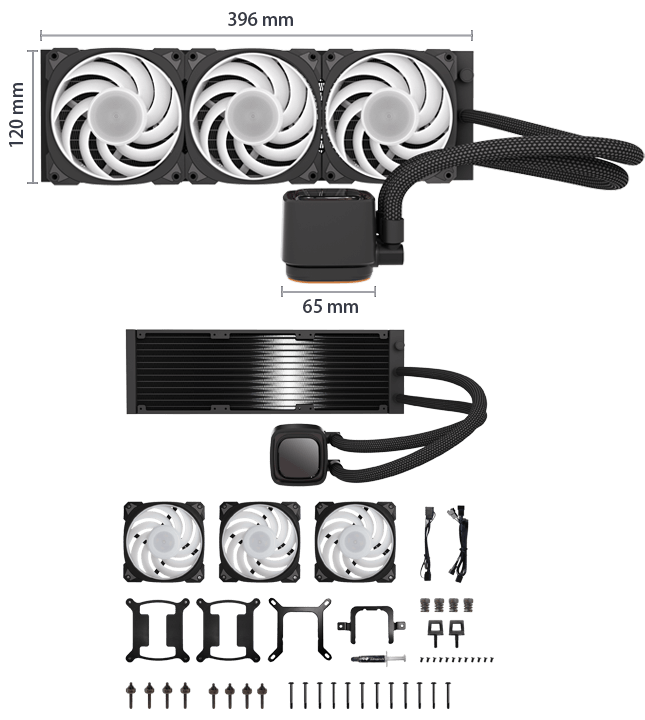

| Radiator | Dimensions (L x W x H) |
397 x 120 x 27 mm (15.6 x 4.7 x 1.06") |
|
| Materials | Aluminium | ||
| Tube Length | 450 mm | ||
| Tube Materials | Rubber with Nylon Braided Sleeve | ||
| Water Block | Dimensions (L x W x H) |
65 x 65 x 56 mm (2.5 x 2.5 x 2.2") |
|
| Materials | Plastic, Copper | ||
| Pump | Pump Speed | 3100 RPM +/- 10% | |
| Power | DC 12V, 0.28A (0.3A MAX) | ||
| Fans | Model | Neptune AN120 | Neptune AN120P |
| Quantity Included | 3 PCS | ||
| Dimensions (L x W x H) |
120 x 120 x 25 mm (4.7 x 4.7 x 1.0") |
||
| Speed Mode | PWM 900 - 2200 +/- 10% RPM | ||
| Noise Level | 20.5 dB(A) (Normal) | ||
| Airflow | 23.87 - 60.1 CFM | ||
| Air Pressure | 0.36 - 2.27 mm / H2O | ||
| Connectors | 4-Pin (12V, PWM), 3-Pin (5V, ARGB) | ||
| Bearing Type | Long Lifespan Sleeve Bearing | ||
| Package Dimensions (L x W x H) |
448 x 137 x 205 mm 17.6 x 5.3 x 8" |
||
| Net Weight | 1.8 Kg / 2.2 lbs | ||
| Gross Weight | 2.4 Kg / 5.2lbs | ||
| Warranty | 3 Years | ||
| * InWin's products comply with RoHS regulation. * Specifications may vary based on different regions. |
|||
